티스토리 뷰

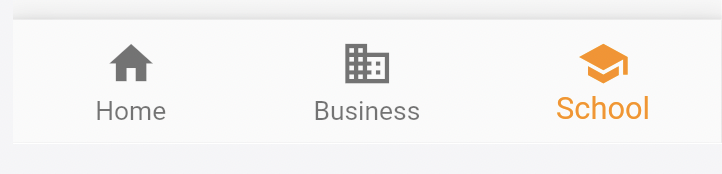

이거 탭바라고 자주불렀는데, 플러터에선 BottomNavigationBar라고 하네요.

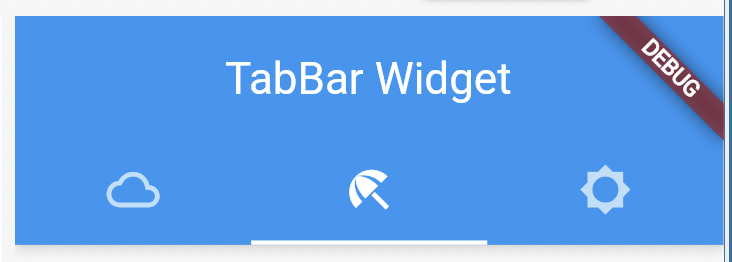

플러터에서 탭바는 상단에 있는 이거라고 합니다.
현재 만들 것은 TabBar가 아닌 BottomNavigationBar 입니다.
시작
1️⃣ BottomNavgationBar를 이용하기 위해선 StatefulWidget이 필요합니다.
따라서 메인 화면이 될 StatefulWidget을 만들고 루트위젯(MyApp())의 home에 넣어줍니다.
// main.dart
void main() => runApp(const MyApp());
class MyApp extends StatelessWidget {
const MyApp({Key? key}) : super(key: key);
static const String _title = 'Flutter Code Sample';
@override
Widget build(BuildContext context) {
return const MaterialApp(
title: _title,
home: MyWidget(), // home에 Stateful 위젯 넣기
);
}
}
// Stateful 위젯 만들기
class MyWidget extends StatefulWidget {
const MyWidget({Key? key}) : super(key: key);
@override
State<StatefulWidget> createState() => _MyWidget();
}
class _MyWidget extends State<MyWidget> {
@override
Widget build(BuildContext context) {
return Container(); // 일단 Container 반환
}
}
2️⃣ 기본적인 상중하 구조를 갖추기 위해 Scaffold 위젯으로 바꿔주겠습니다.
class _MyWidget extends State<MyWidget> {
@override
Widget build(BuildContext context) {
return Scaffold( // Container를 Scaffold로 변경
appBar: AppBar(
title: Text('BottomNavigationBar Sample'),
),
body: Center(
// 메인 컨텐츠 위치
),
);
}
}
3️⃣ Scaffold 속성인 bottomNavigationBar을 추가해주겠습니다. 필수속성인 items에는 탭바요소가 들어가면 되겠습니다.
요소는 반드시 두개 이상이어야 하며 icon과 label은 필수 속성입니다.
class _MyWidget extends State<MyWidget> {
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: Text('BottomNavigationBar Sample'),
),
body: Center(
),
// bottomNavigationBar 속성 추가 후 탭 요소가 될 item들 추가
bottomNavigationBar: BottomNavigationBar(
items: const <BottomNavigationBarItem>[
BottomNavigationBarItem(
icon: Icon(Icons.home),
label: 'tab1',
),
BottomNavigationBarItem(
icon: Icon(Icons.camera),
label: 'tab2',
),
BottomNavigationBarItem(
icon: Icon(Icons.usb_rounded),
label: 'tab3',
),
],
),
);
}
4️⃣ 이제 bottomNavigationBar가 작동하도록 해주겠습니다.
bottomNavigationBar를 작동시키기 위해서는 인덱스 관리가 필요합니다.
인덱스를 통해 어떤 탭 화면에 위치하고 있는지 관찰하고 화면을 업데이트 할 것입니다.
먼저 클래스 변수로 인덱스를 저장할 변수를 선언해줍니다. (_selectedIndex)
그리고 인덱스가 바뀔때마다 변수를 변경해줄 _onItemTapped 함수도 만들어줍니다.
ㄴ 함수명은 변경해도 되나, 파라미터는 변경할 수 없습니다.
class _MyWidget extends State<MyWidget> {
// 현재 선택된 탭 인덱스 관리할 변수
int _selectedIndex = 0;
// 탭 될때 인덱스 변수 변경할 함수
void _onItemTapped(int index) {
setState(() {
_selectedIndex = index;
});
}
...
그 다음 BottomNavigationBar에 다음 속성들을 추가해줍니다.
currentIndex: _selectedIndex, // 현재 인덱스를 _selectedIndex에 저장
onTap: _onItemTapped, // 요소(item)을 탭 할 시 실행
5️⃣ 작동 확인을 위해 Scaffold 위젯의 body에 텍스트를 넣어주었습니다.
body: Center(
child: Text("${_selectedIndex}", style: TextStyle(fontSize: 50)),
),
탭별로 위젯 넣기 ⬇️
이런식으로 위젯 리스트를 선언해놓고 return문에 작성하면 더 깔끔한 코드를 작성할 수 있습니다.
// 탭 별 페이지 - 클래스 변수
static const TextStyle optionStyle =
TextStyle(fontSize: 30, fontWeight: FontWeight.bold);
static const List<Widget> _widgetOptions = <Widget>[
Text(
'0',
style: optionStyle,
),
Text(
'1',
style: optionStyle,
),
Text(
'2',
style: optionStyle,
),
];
...
// Scaffold body
body: Center(
child: _widgetOptions.elementAt(_selectedIndex),
),

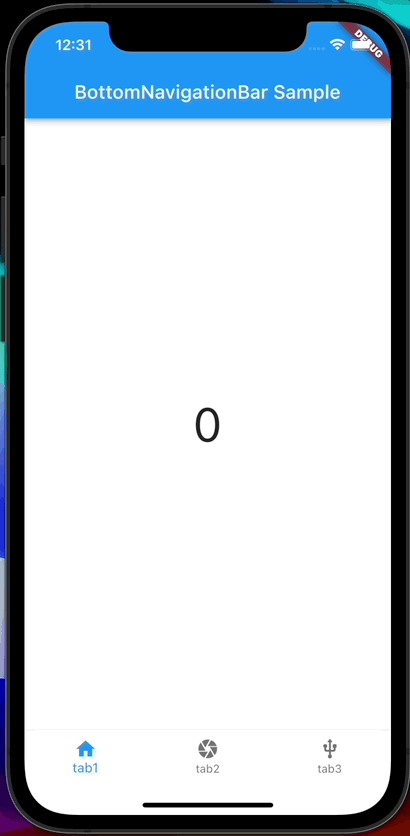

결과
전체코드
import 'package:flutter/material.dart';
void main() => runApp(const MyApp());
class MyApp extends StatelessWidget {
const MyApp({Key? key}) : super(key: key);
static const String _title = 'Flutter Code Sample';
@override
Widget build(BuildContext context) {
return const MaterialApp(
title: _title,
home: MyWidget(),
);
}
}
class MyWidget extends StatefulWidget {
const MyWidget({Key? key}) : super(key: key);
@override
State<StatefulWidget> createState() => _MyWidget();
}
class _MyWidget extends State<MyWidget> {
int _selectedIndex = 0;
void _onItemTapped(int index) {
setState(() {
_selectedIndex = index;
});
}
// 탭 별 페이지
static const TextStyle optionStyle =
TextStyle(fontSize: 30, fontWeight: FontWeight.bold);
static const List<Widget> _widgetOptions = <Widget>[
Text(
'0',
style: optionStyle,
),
Text(
'1',
style: optionStyle,
),
Text(
'2',
style: optionStyle,
),
];
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: Text('BottomNavigationBar Sample'),
),
body: Center(
child: _widgetOptions.elementAt(_selectedIndex),
),
bottomNavigationBar: BottomNavigationBar(
items: const <BottomNavigationBarItem>[
BottomNavigationBarItem(
icon: Icon(Icons.home),
label: 'tab1',
),
BottomNavigationBarItem(
icon: Icon(Icons.camera),
label: 'tab2',
),
BottomNavigationBarItem(
icon: Icon(Icons.usb_rounded),
label: 'tab3',
),
],
currentIndex: _selectedIndex,
onTap: _onItemTapped,
),
);
}
}
Ref.
Flutter BottomNavigationBar 공식문서
